MUFF COUPLING


KEVYA CORPORATION are distinguised by their MECHANICAL FLEXIBILITY and compensation of MISALIGNMENT of the connected shafts automatically without any loss of transmitted power during running. These coupling ensure greater flexibility because of their well designed tooth formation generated by INVOLUTE system to ensure uniform toothe PROFILE AND PITCH.


LUBRICATION

KEVYA CORPORATION muff couplings are rigid coupling. Designed for use in system where misalignment is neither present nor desired. These coupling offer an easy and cost effective method for extending a shaft or adapting between two different shaft sizes.

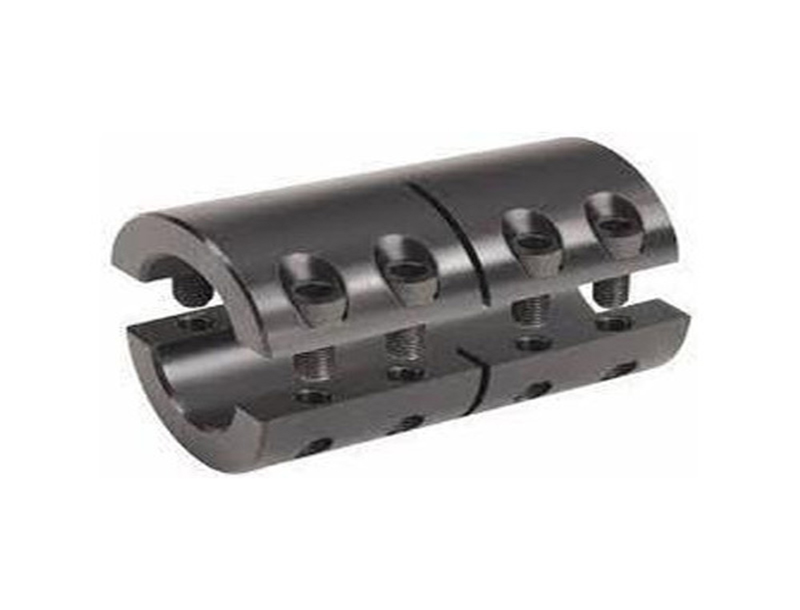

MUFF COUPLING 1

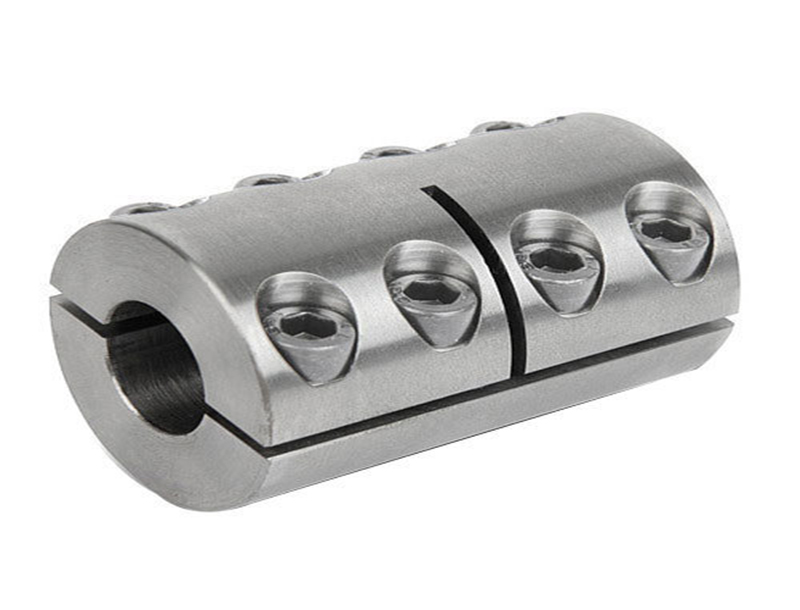

MUFF GEAR COUPLING 2

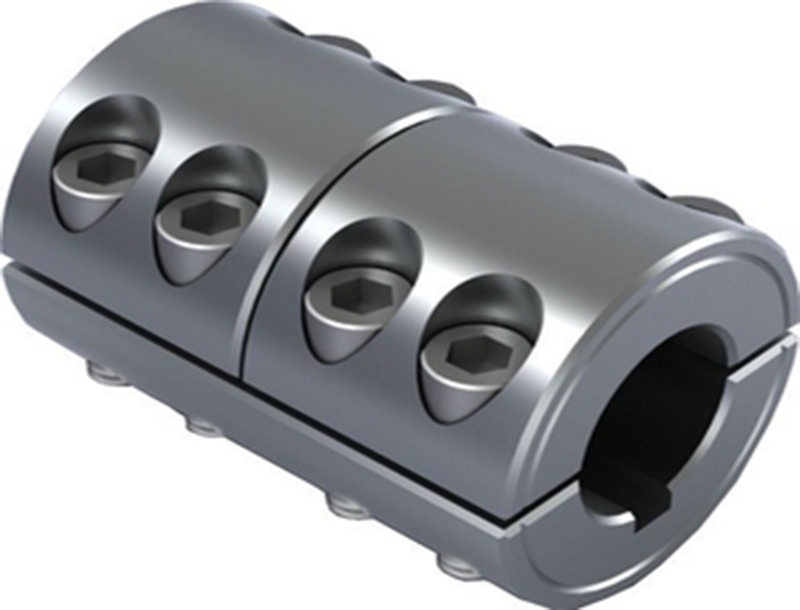

MUFF GEAR COUPLING 3

COUPLING SIZE MAX. BORE ØdMAX. BORE Ød TORQUE NM ALLEN HEAD SCREWS OUTSIDE DIAMETER ØAOUTSIDE DIAMETER ØA LENGTH L APPROX. WEIGHT IN KG.
WITH KEY WITHOUT KEY
KCI 20 20 350 230 M6 X 8 60 100 1.8
KCI 30 30 800 525 M8 X 8 80 130 4.4
KCI 40 40 1240 825 M8 X 8 80 160 5.7
KCI 50 50 2050 1350 M10 X 8 100 190 10
KCI 60 60 3260 2150 M10 X 8 120 220 16.5
KCI 70 70 4830 3200 M12 X 10 140 250 20
KCI 80 80 6800 4500 M12 X 10 160 280 38
KCI 90 90 8350 5500 M16 X 10 180 310 50
KCI 100 100 12450 8250 M16 X 12 200 350 55
KCI 110 110 15825 10500 M16 X 12 220 390 75
KCI 120 120 20640 13500 M16 X 14 250 430 135
KCI 140 140 32600 21650 M20 X 14 280 490 200
KCI 160 160 45100 30000 M24 X 14 320 560 320
KCI 180 180 67300 41850 M24 X 14 360 630 457
KCI 200 200 82000 55000 M27 X 14 400 700 626
KCI 220 220 109000 72400 M30 X 16 450 770 825
KCI 240 240 138000 92000 M30 X 16 480 840 1045
KCI 260 260 163000 108500 M36 X 16 520 910 1240
KCI 280 280 205000 135500 M42 X 16 570 980 1640
