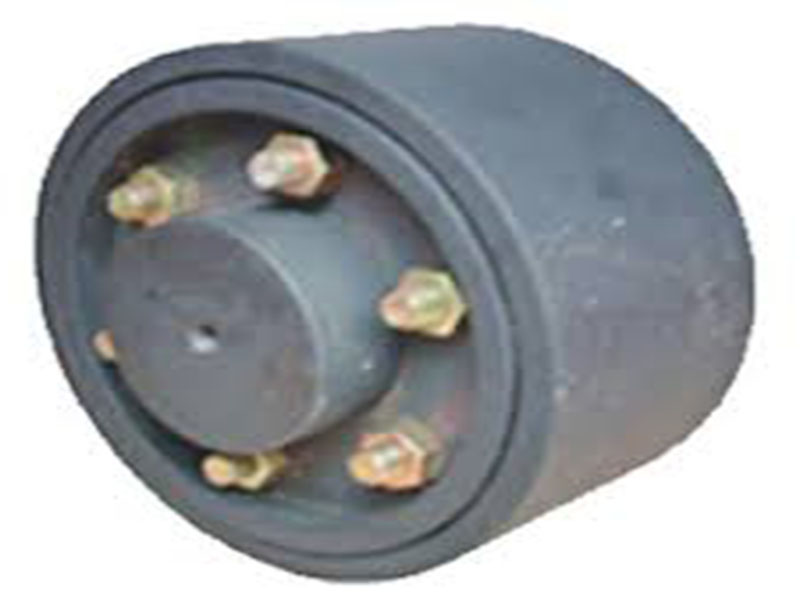

C. I. BRAKE DRUM COUPLING

C.I. BRAKE DRUM COUPLING

C. I. NEW

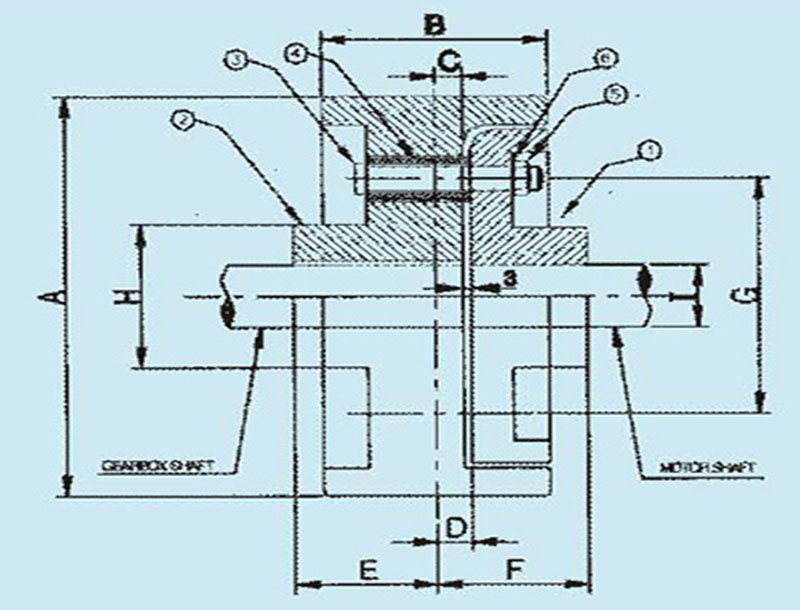

COUPLINGSIZE ØA B C D E F ØG ØH FINISH BORE(I) Weight
Kg.		 TORQUE HP/RPM CD2
KGM2
Min.
Max
KCI 150 150 75 3 6 42 42 92 70 20 35 8 36 0.028 0.09
KCI 200 200 100 6 10 57 73 127 90 20 55 20 63 0.050 0.32
KCI 250 250 127 6 10 82 98 142 100 25 60 36 90 0.125 1.0
KCI 300 300 152 6 10 89 105 197 127 25 75 57 250 0.350 2.5
KCI 400 400 165 3 6 147 156 250 137 25 85 112 360 0.500 9.94
